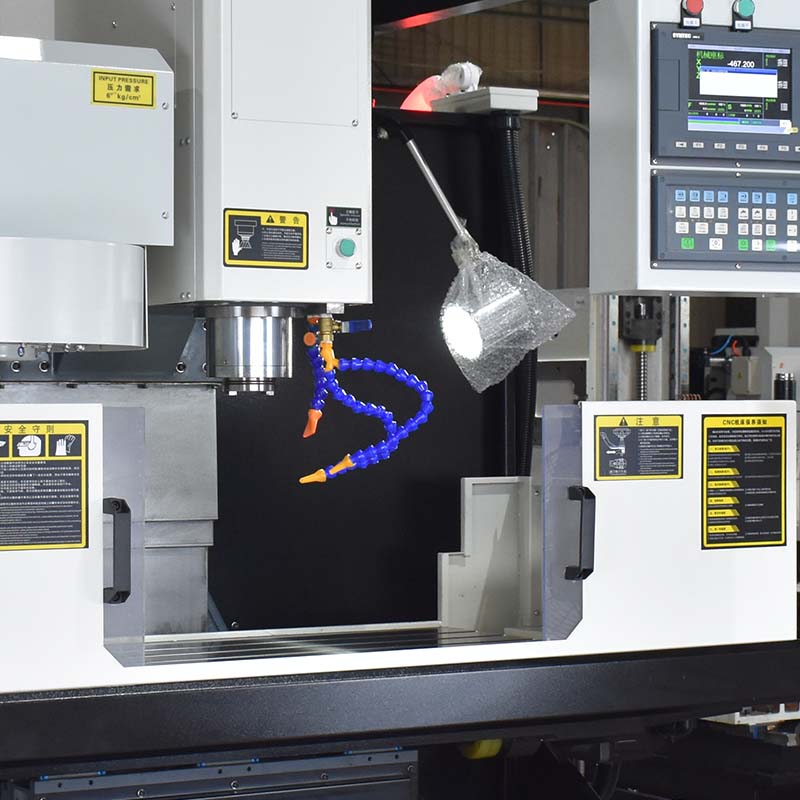

Automatic VMC Milling Machine 500mm Z Axis Travel Vertical Machine Center
Product Features:
1. High strength alloy cast iron.
2. High quality resin sand.
3. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.
4. Optimal configuration: imported/domestic major outsourcing parts and components including the CNC system, spindle unit, tools magazine, ball screw, bearings, etc.
5. Large travel: larger travels in all three directions than those of the same specifications in the market.
Product Specification:
| Model No. | CNC-1250GM |
| X axis travel | 1200mm |
| Y axis travel | 500mm |
| Z axis travel | 500mm |
| Distance from spindle nose to the work table | 120-620mm |
| Distance from spindle center to column guideway | 580mm |
| X rapid feed | 36m/min |
| Y rapid feed | 36m/min |
| Z rapid feed | 24m/min |
| Cutting rapid feed | 8000mm/min |
| The width of the triaxial linear guide | 35mm |
| The number of the slider in the X axis | 6 pieces |
| The number of the slider in the Y axis | 4 pieces |
| The number of the slider in the Z axis | 4 pieces |
| Triaxial screw size | 40/12mm |
| Work table size | 1800x420mm |
| The maximum load capacity | 400KG |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm |
| Spacing | 90mm |
| Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.008mm |
| Spindle speed range | 20-8000rpm/min |
| Feed axis motor power | 1.8/1.8/2.5KW |
| Feed motor connection form | Direct Connection |
| Taper of spindle hole | BT40 |
| The spindle of output power | 5.5/7.5KW |
| Cooling box form | Independent |
| Tool Changer | Carousel tool changer |
| Tool Capacity | 12/24pieces |
| Dimension of machine tool | 2250*1700*2300mm |
| Weight of machine | 2450KG |
Company Information:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Our Exhibition:
Workpiece Sample:
FAQ:
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
1 set .
5. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
